110 Degree Concealed Full Overlay 35mm Soft Close Cabinet Two Way Door HingeDEQING LINNUO HYDRAULIC DAMPING TWO WAY CABINET HINGE with a four-hole square base, calm and atmospheric design. 5° small angle buffer, with built-in buffer, users have the best door opening experience. The two-way cabinet hinge can support the cabinet door to open and stop at will, and prevent the baby hand from being pinched, which reflects the humanistic care of Tallsen designers for users; DEQING LINNUO adheres to international advanced production technology, authorized by ISO9001 quality management system, Swiss SGS quality testing and CE certification,ensure that all products comply with international standards.
Collect
Product Description
DEQING LINNUO TWO WAY HYDRAULIC DAMPING CABINET HINGE is made from Shanghai Baosteel company’s cold rolled steel with strong stability, the surface of cabinet hinge is 3MM double-layer electroplated, 1.5mm chrome plated, 1.5mm nickle plated. Nickel-plated color keeps the original color of the hinge, 360°match with light-colored and dark-colored furniture. Each batch of cabinet hinges passed the 48-hour neutral salt spray test and level 8, anti-corrosion and anti-rust. And passed 50,000 opening and closing tests, with a service life of up to 20 years. Suitable for door panels with a thickness of 14-21mm, wider application scenarios ex. Wardrobe, Kitchen cabinet,Bathroom cabinet etc. Product Details

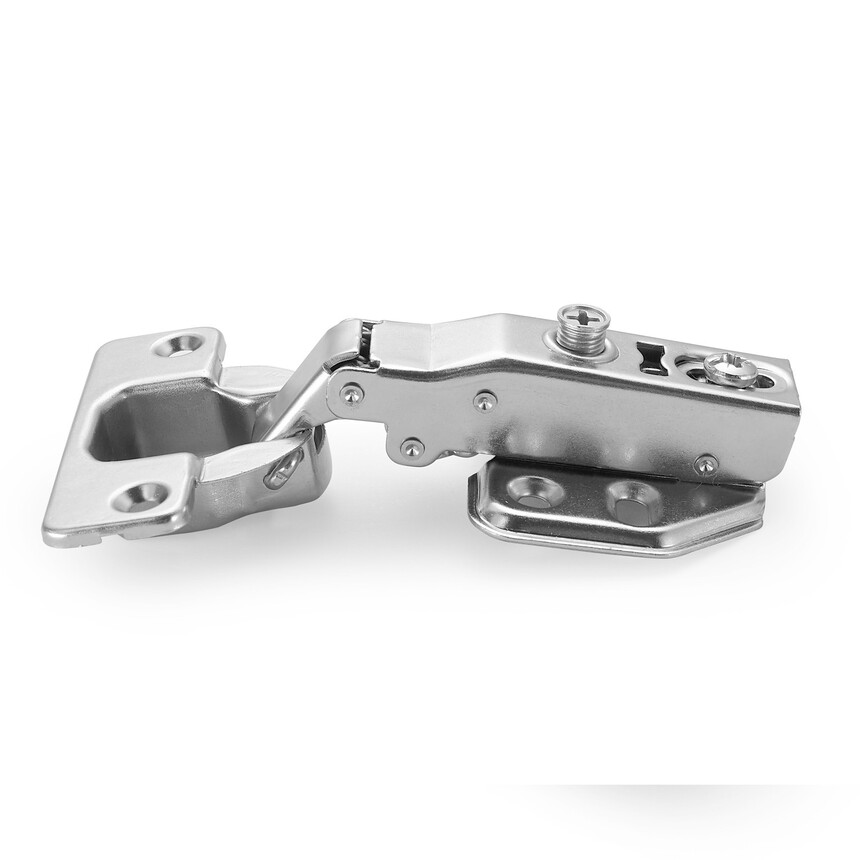

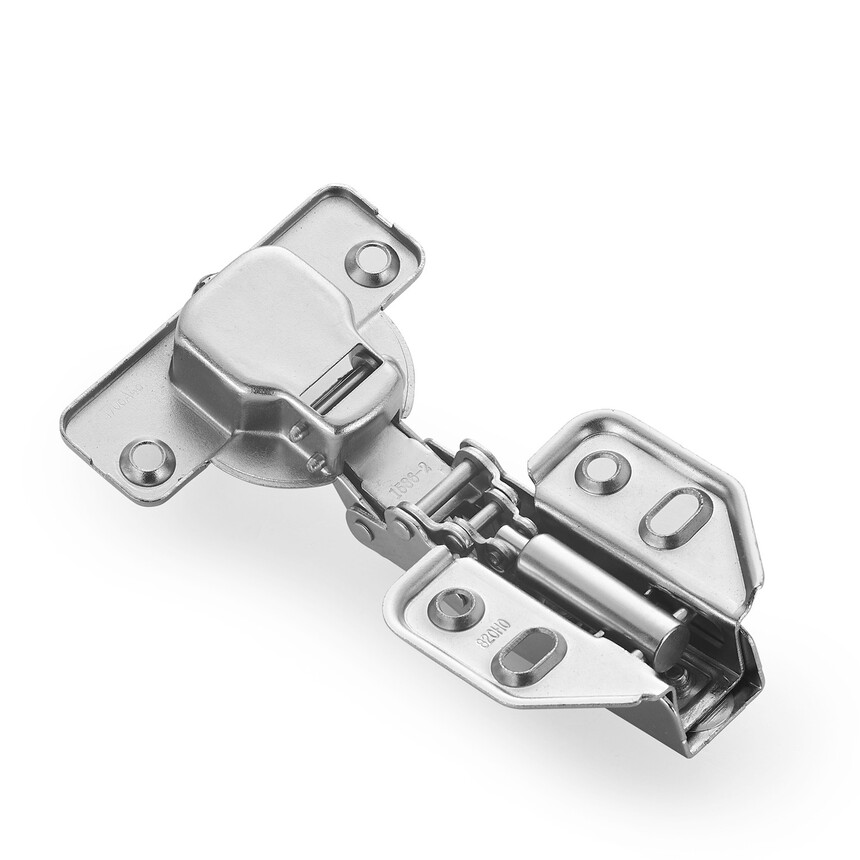

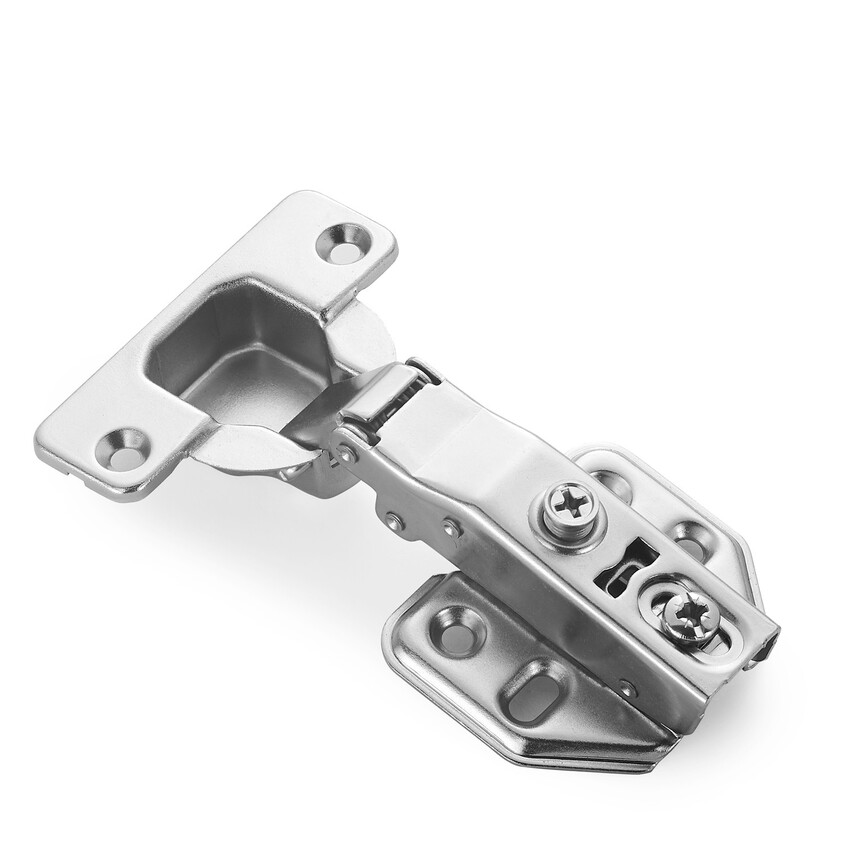

TH9919(quick recessed cabinet hinges) is a two-stage force fixed hydraulic damping hinge, the material is the famous Shanghai cold-rolled steel plate.
All accessories are processed by heat treatment, the hardness reaches 50-55 degrees, the accessories are wear-resistant.
The size of the adjusting screw is M7, the adjustment range is large, and the cover position adjustment and front and rear adjustment are larger than conventional. Product Features ● Two-way 5°angle buffer, open and stop at will ● 3MM double-layer electroplating ● Built-in buffer, close the cabinet door silently ● 48 hours neutral salt spray test level 8 ● 50000 opening and closing tests ● 20 years service life Product Description

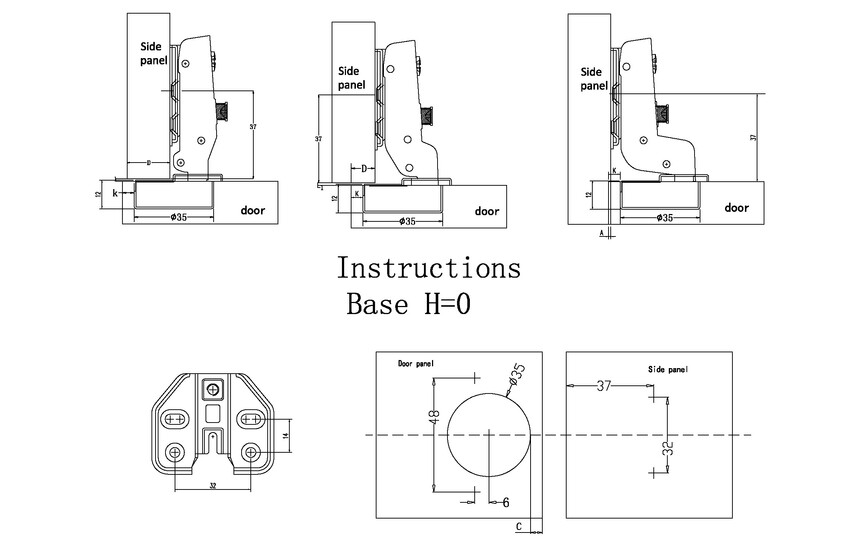

Installation Diagram
